Oriented-Det v0.1.1 — ProbIoU, MMRotate parity, and the updated zoo

Six weeks after v0.1.0, Oriented-Det v0.1.1 is on PyPI and tagged on GitHub. This is the release that packages the ProbIoU work, closes several MMRotate parity gaps in the training stack, and publishes the full eval-val protocol we have been using internally.

If you already read Rotated Faster R-CNN on DOTA without custom CUDA, you have seen the technical story behind the headline number. This post is the release note: what changed, how to upgrade, and what to watch for.

Upgrade Link to heading

pip install -U oriented-det
# or pin:
pip install oriented-det==0.1.1

PyTorch is still installed separately for your platform (pytorch.org). Pretrained weights are unchanged in location — dl4eo/oriented-det-pretrained on Hugging Face — but two Rotated Faster R-CNN slugs are now first-class in the CLI:

odet pretrained download rotated_faster_rcnn_dota_le90_3x
odet pretrained download rotated_faster_rcnn_dota_le90_1x

Headline: ProbIoU and the updated zoo Link to heading

v0.1.1 ships ProbIoU ROI regression for Rotated Faster R-CNN (roi_box_reg_main_loss_type: probiou with a small Smooth L1 auxiliary). The published rotated_faster_rcnn_dota_le90_3x checkpoint reaches 83.42% eval-val mAP50 — the highest-accuracy model in the zoo, ahead of Oriented R-CNN 3× at 79.40%. A new rotated_faster_rcnn_dota_le90_1x slug lands at 77.57%.

The CE Smooth L1 baseline that shipped briefly at 76.41% remains available as rotated_faster_rcnn_dota_le90_3x_ce for ablations. For the sampled-rIoU vs ProbIoU trade-offs, per-class deltas, and training recipe, see the ProbIoU deep dive.

In June we recommended Oriented R-CNN for quick macOS demos because it behaved well without CUDA rotated-IoU kernels. v0.1.1 changes the default pick: rotated_faster_rcnn_dota_le90_3x for best DOTA-style accuracy and throughput out of the box; Oriented R-CNN 3× remains strong when rotated RoIAlign behaviour matters for your domain.

Accuracy and speed vs Oriented R-CNN Link to heading

The zoo leader is not only more accurate — it is much faster at inference and training. Timings below use the same eval-val pipeline as the zoo: one 1024×1024 forward per DOTA val tile, production.* decode, exact CPU polygon NMS when configured. Figures come from predictions.json metadata on 7,669 val images (CUDA); see the ProbIoU deep dive for methodology and per-class breakdowns.

Rotated Faster R-CNN is ~6.9× faster on tiled val inference than Oriented R-CNN at comparable accuracy tiers — and emits fewer raw detections (≈14 vs ≈25 boxes per image at score ≥ 0.05), which also keeps CPU NMS cheaper.

Why the gap?

1. RoIAlign geometry — Rotated Faster R-CNN uses horizontal RoIAlign on horizontal RPN proposals; Oriented R-CNN uses rotated RoIAlign on oriented proposals (heavier per-RoI sampling).
2. Proposal volume — Oriented R-CNN’s midpoint-offset RPN tends to produce more candidates before NMS, increasing head and NMS work.
3. Same honest NMS — both runs use CPU polygon final NMS when configured; the speedup is architectural, not a metric shortcut.

Training shows the same pattern on the same tile recipe: ~58 min/epoch (Rotated Faster R-CNN 1×) vs ~4 h 4 min/epoch (Oriented R-CNN 1×). At 1× schedule, Rotated Faster R-CNN already beats Oriented R-CNN on eval-val mAP50 (77.57% vs 74.79%) while finishing a full 12-epoch run in roughly one fifth the wall time.

Try it: inference on a complex harbor scene Link to heading

To show the zoo leader running end-to-end — no MMRotate stack, no fine-tuning — we ran rotated_faster_rcnn_dota_le90_3x on large.jpg from the oriented-det demo folder: a 1299×1904 RGB aerial tile with a busy harbor — moored ships at arbitrary headings, pier structures, and scattered vehicles.

The DOTA le90 recipe uses a 1024×1024 model canvas. Anything larger triggers padded sliding-window inference: overlapping crops, detections merged back into full-image coordinates, then merge NMS.

From the oriented-det repository root:

odet pretrained download rotated_faster_rcnn_dota_le90_3x

odet image-demo demo/large.jpg hf://rotated_faster_rcnn_dota_le90_3x \
  --out-file large_detections.png \
  --device mps \
  --score-thr 0.25 \
  --nms-thr 0.3

On Apple Silicon use --device mps; on Linux with CUDA, --device cuda:0. The hf:// slug resolves config and weights from the pretrained manifest — no separate JSON path needed.

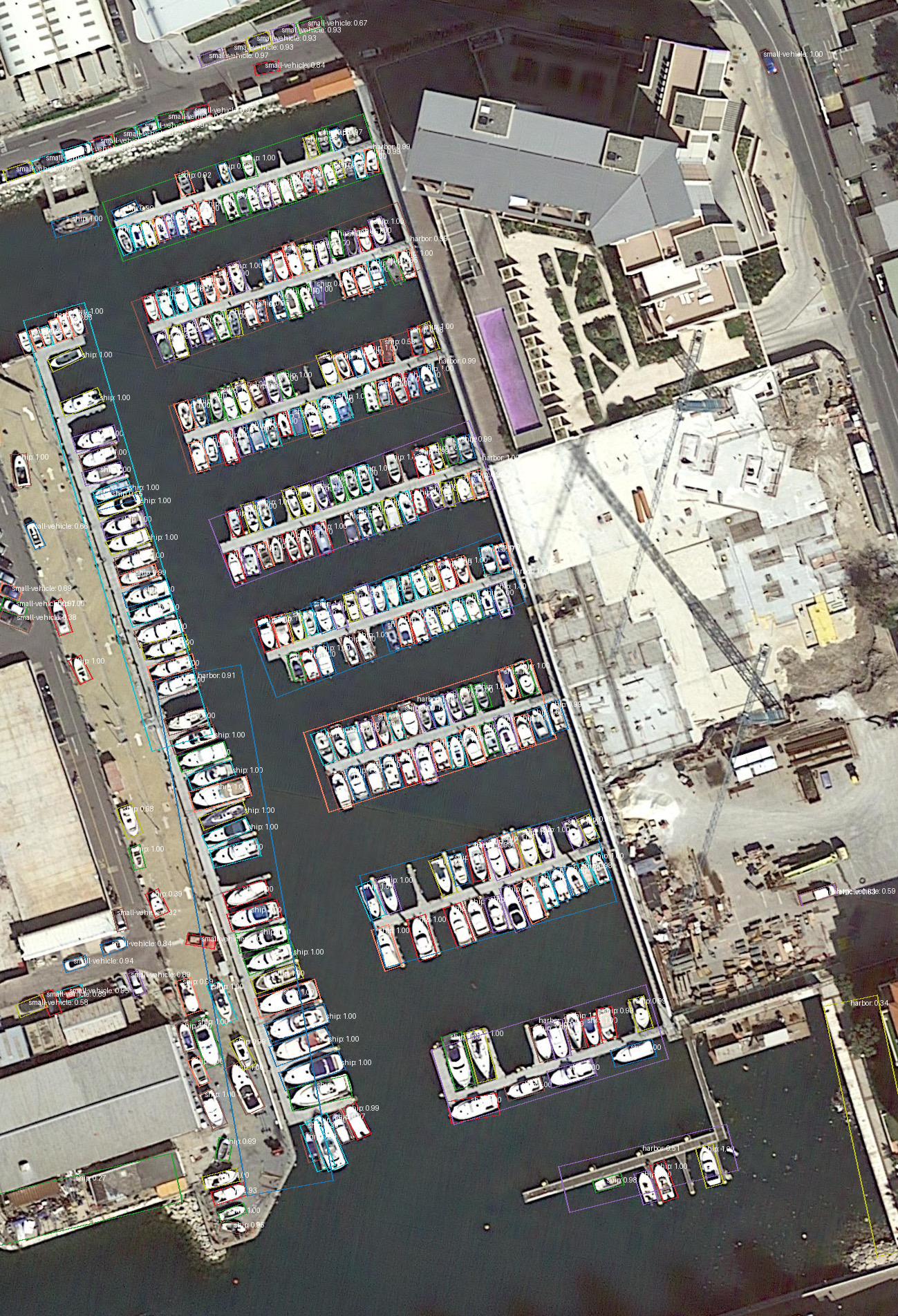

At score ≥ 0.25 and merge NMS IoU ≤ 0.3, the run produced 330 detections:

Most boxes sit on vessel hulls with headings that match the pier layout. A few harbor labels appear on pier-like structures — expected category overlap on dense waterfront scenes.

Useful inference knobs: --score-thr balances recall vs clutter on dense scenes; --nms-thr merges duplicate boxes from overlapping windows (around 0.3 matches this checkpoint’s production config); --overlap-pixels defaults to 200 — increase it when targets are large relative to the canvas so nothing is split across windows without a full view in any crop. For smaller targets on satellite tiles, see the Sentinel-2 ship demo (--zoom 4).

MMRotate parity fixes Link to heading

Beyond ProbIoU, v0.1.1 aligns several training details with MMRotate / MMDetection behaviour — the kind of small differences that show up as a few degrees on ships rather than a leaderboard headline.

ROI regression loss. All three two-stage detectors now use encoded-space Smooth L1 on all five channels (MMRotate default), replacing a radian periodic angle loss that under-weighted angle gradients relative to MMRotate.

Oriented R-CNN. Midpoint RPN and oriented ROI losses use MMDet-style avg_factor normalization. Training RPN proposals are no longer score-filtered. ROI matching defaults to rotated IoU (roi_use_hbb_for_matching: false). Oriented RoIAlign uses the first four FPN levels only.

Rotated RetinaNet. Separate cls/reg four-conv towers with 3×3 prediction heads replace the previous shared tower and 1×1 heads. P6/P7 come from LastLevelP6P7 on C5. Assignment uses rotated IoU; regression uses encoded L1 with avg_factor normalization.

These changes improve reproducibility against MMRotate baselines and tighten angle alignment on elongated objects. They also mean RetinaNet checkpoints from before v0.1.1 are incompatible — re-train or pull Hub weights published after this release.

Eval reports and training provenance Link to heading

Two operational additions matter if you are running your own training runs rather than downloading Hub weights.

Published eval reports under docs/eval-reports/ — per-class AP, confusion matrices, GT-alignment stats, PR curves. The full-tile protocol is documented and wired to make eval-val: all 7,669 DOTA val tiles, filter_empty_gt=false, rotated IoU ≥ 0.50, production decode settings from the experiment config.

Source provenance metadata in training runs: git_commit, package version, and config hash are recorded alongside checkpoints so you can trace a weight file back to the exact code and config that produced it.

dataset.train_includes_val — a config flag for Airbus Playground-style setups where you train on all folds and use the val fold for monitoring only, without leaking labels into the loss inappropriately.

What did not change Link to heading

The core design from v0.1.0 is intact: pure Python / PyTorch, no MMCV runtime dependency, no custom CUDA kernels for oriented geometry. Sampled GPU rIoU still handles anchor matching; Shapely polygon IoU still drives published mAP. Apache 2.0, sovereign deployment, odet CLI workflow — all unchanged.

Links Link to heading

• Release notes: github.com/DL4EO/oriented-det/releases/tag/v0.1.1
• PyPI: pypi.org/project/oriented-det/0.1.1
• Documentation: dl4eo.github.io/oriented-det
• Pretrained zoo: huggingface.co/dl4eo/oriented-det-pretrained
• ProbIoU deep dive: Rotated Faster R-CNN on DOTA without custom CUDA
• Previous release: Oriented-Det v0.1.0 is out

Written on July 11, 2026 by Jeff Faudi. Link to heading
